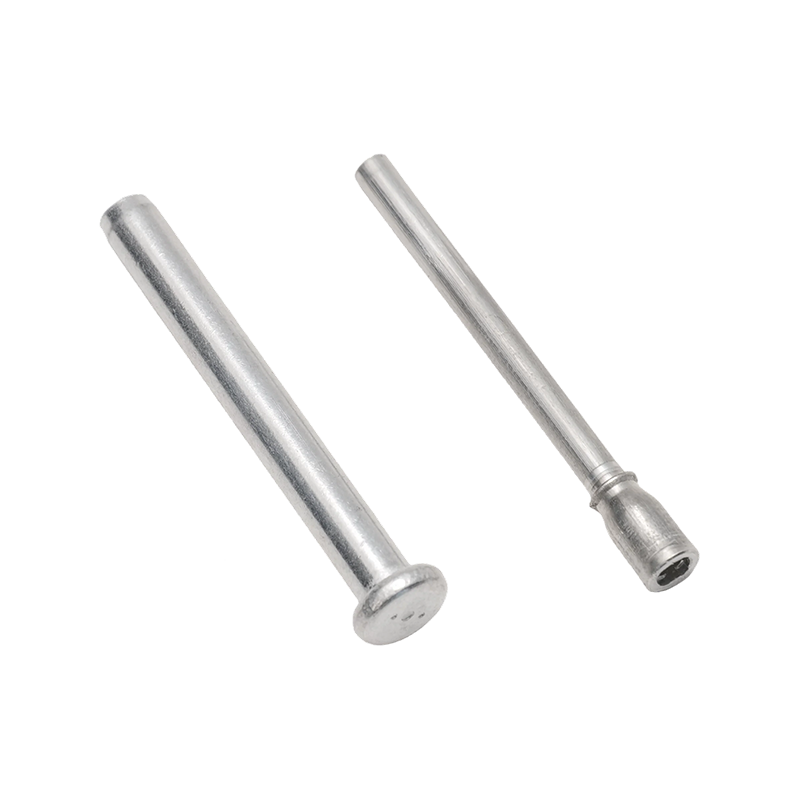

For Rivets

What Separates High-Strength Aluminum Alloy Wire from Standard Grades

Standard commercial aluminum wire — typically 1xxx series — is optimized for conductivity and formability, with tensile strength in the 60–100 MPa range. High-strength aluminum alloy wire operates in a fundamentally different design space, achieving tensile strengths of 200–500 MPa depending on alloy series and temper. This is not incremental improvement; it represents a different set of metallurgical mechanisms. The strength gains come from two primary sources: solid solution strengthening, where alloying elements such as Mg, Si, Cu, or Zn distort the aluminum lattice and impede dislocation movement, and precipitation hardening, where controlled aging treatments cause nanoscale intermetallic phases to form within the grain structure, creating obstacles that dislocations must bypass or cut through.

The tradeoff is conductivity. Every alloying addition that raises strength reduces the mean free path of conduction electrons. For applications where both properties matter — overhead power transmission conductors, automotive wiring harnesses, aerospace signal cables — alloy selection becomes a multi-variable optimization problem rather than a simple lookup. The 6xxx series (Al-Mg-Si) represents the most widely used compromise, offering tensile strengths of 200–310 MPa with conductivity in the 52–58% IACS range. The 7xxx series (Al-Zn-Mg) pushes strength higher still, at a steeper conductivity cost, and is reserved for structural applications where electrical performance is secondary. Jiangsu Hetuo Aluminum Wire produces across multiple alloy series, allowing specification matching to the exact strength-conductivity balance a given application requires.

Temper Designations and Their Practical Implications for Wire Buyers

Alloy composition sets the ceiling for achievable properties; temper determines where within that range the final product lands. For heat-treatable alloys (2xxx, 6xxx, 7xxx), the T-temper system describes the combination of solution heat treatment, quenching, and aging applied after forming. T4 designates solution-treated and naturally aged material — softer, more formable, with moderate strength. T6 adds artificial aging at elevated temperature, maximizing strength at the cost of some ductility and corrosion resistance. T73 and T76 tempers sacrifice a portion of peak strength to dramatically improve stress corrosion cracking resistance — critical in marine and high-humidity service environments.

For wire specifically, temper selection interacts with downstream processing. A T6-temper wire delivered to a coil winding operation may crack during tight-radius bending if the geometry exceeds the material's minimum bend radius — requiring the buyer to specify T4 or O (annealed) temper for forming, then apply a post-forming aging treatment. Understanding this sequence matters especially when sourcing from aluminum alloy wire suppliers for complex fabrication workflows. Reputable suppliers provide full temper documentation alongside chemical composition certificates, enabling downstream processors to verify that heat treatment parameters were correctly applied and that mechanical properties fall within the specified range — not just the nominal values on a datasheet.

Key Application Sectors and the Wire Specifications They Drive

Overhead conductor applications — particularly ACSR (Aluminum Conductor Steel Reinforced) replacement programs using all-aluminum designs — have been a significant driver of high-strength alloy wire development. ACSS/TW (Trapezoidal Wire) conductors using 1350-H19 or 6201-T81 wire achieve sag performance comparable to steel-reinforced designs at reduced weight, enabling line uprating without tower replacement. Tensile strength requirements in this segment typically run 295–330 MPa with elongation minimums of 3–5%, and conductor manufacturers specify tight diameter tolerances (±0.01 mm on fine gauges) to ensure consistent stranding geometry.

Automotive applications present a different specification profile. As vehicle electrification accelerates, OEM and Tier 1 suppliers are replacing copper wiring harness segments with aluminum alloy alternatives to reduce weight — a 48V bus conductor switch from copper to aluminum alloy can reduce harness weight by 40–50% for equivalent current-carrying capacity. These applications demand wire that survives vibration fatigue over a 15-year vehicle life, maintains crimp joint integrity across −40°C to 125°C temperature cycling, and passes salt-spray corrosion requirements. The 6xxx and specially developed Al-Fe-Cu micro-alloy compositions have proven most suitable here. IATF 16949 certification is essentially a prerequisite for qualifying into this supply chain, as automotive buyers require documented SPC data and full PPAP packages before approving a new wire supplier.

Aerospace and defense applications push requirements further still, with fracture toughness, fatigue crack growth rate, and stress corrosion cracking resistance added to the specification matrix alongside tensile and conductivity requirements. Wire for these sectors is typically produced to AMS or MIL specifications, with material traceability extending back to the original ingot melt lot.

Evaluating Suppliers Beyond Price: A Technical Qualification Framework

For buyers qualifying new aluminum alloy wire suppliers, price and lead time are table-stakes variables — the technical differentiators that determine long-term supply reliability are harder to assess from a quotation alone. The first evaluation axis is vertical integration: a supplier controlling its own rod casting, alloying, and drawing operations can manage composition consistency and heat treatment parameters end-to-end, whereas a converter purchasing rod from a third party inherits variability it cannot fully control. Full traceability from melt chemistry to final wire properties is only achievable with vertical integration.

The second axis is testing capability. In-house ICP-OES or spark OES for alloy chemistry verification, universal tensile testing machines with extensometers for elongation measurement, and eddy current or ultrasonic inspection for internal defect detection are the minimum credible equipment set. Suppliers who rely entirely on mill certificates from upstream rod suppliers without conducting incoming or in-process verification introduce uncontrolled risk into the supply chain. As a certified manufacturer holding both ISO 9001 and IATF 16949 accreditation, Jiangsu Hetuo Aluminum Wire operates within a documented quality framework that requires in-process inspection at every production stage — not just final product release testing. For buyers building a qualified vendor list, requesting a facility audit or third-party inspection report remains the most direct method of validating that the quality system described on paper reflects actual production discipline on the shop floor.
